TS EN 124ISO 9001:2015CE
EN 124 · D400

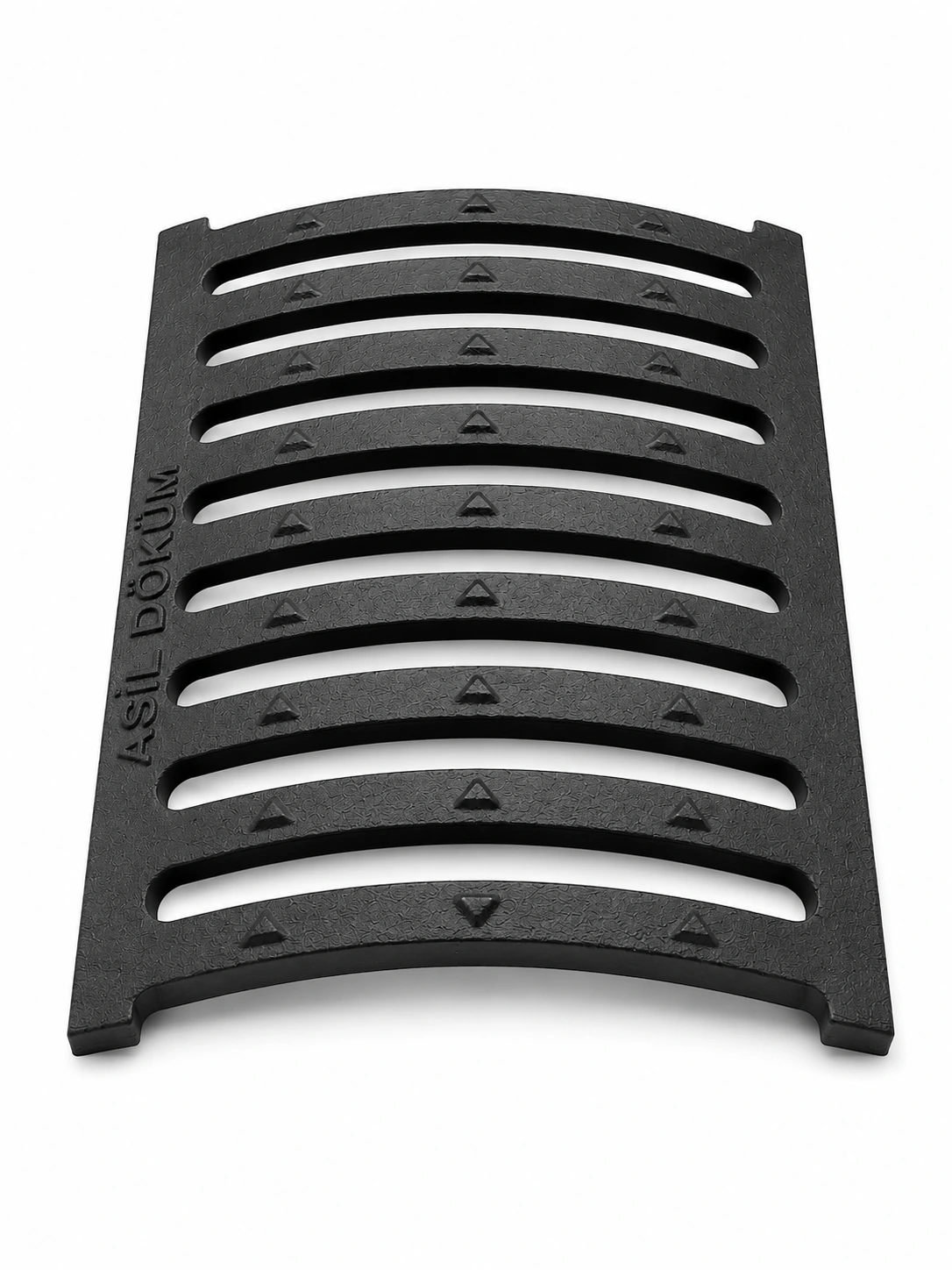

300×500×35 mm Convex Type Channel Grating (D400)
AD-BKI-01
A ductile cast iron product from the Convex Type Gratings range. Dimensions 300×500×35 mm; EN 124 load class D400; weight 12 kg.
Technical Specifications
| Product Code | AD-BKI-01 |
| Dimensions | 300×500×35 mm |
| Load Class (EN 124) | D400 |
| Material | Cast Iron |
| Weight | 12 kg |
| Standard | TS EN 124 |
Get a price quote for this product
Send us quantities and project details; our team will get back to you shortly.
You can call us directly for this product without filling a form.
Product Details & Size Table
Cast iron grating to TS EN 124. Size 300×500×35 mm, load class D400, approx. 12 kg.

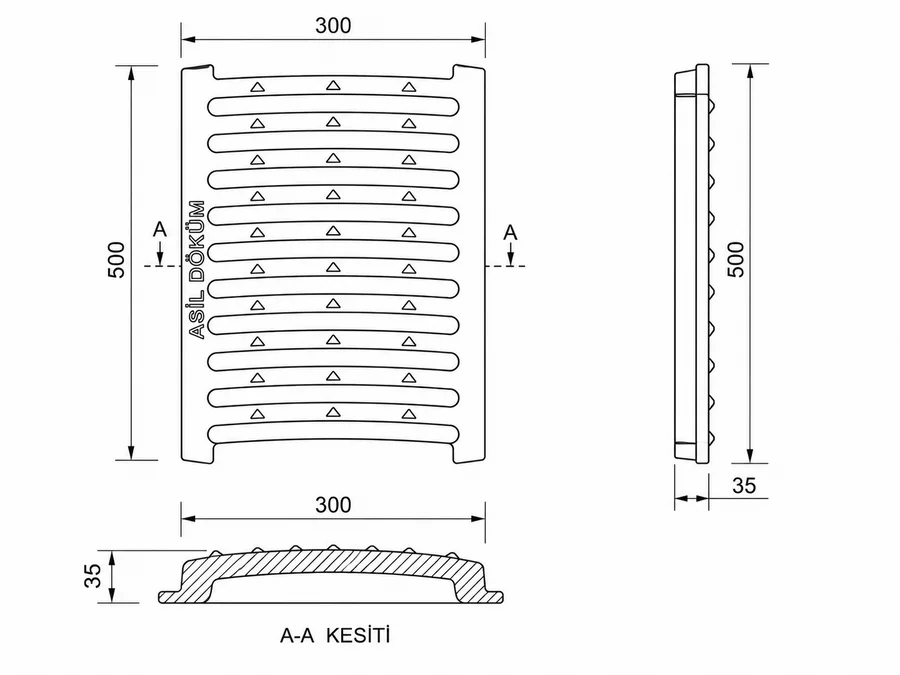

Dimension Table
| Dimension | Value |
|---|---|
| A | 300 mm |
| B | 500 mm |
| H | 35 mm |
