TS EN 124ISO 9001:2015CE
EN 124 · D400

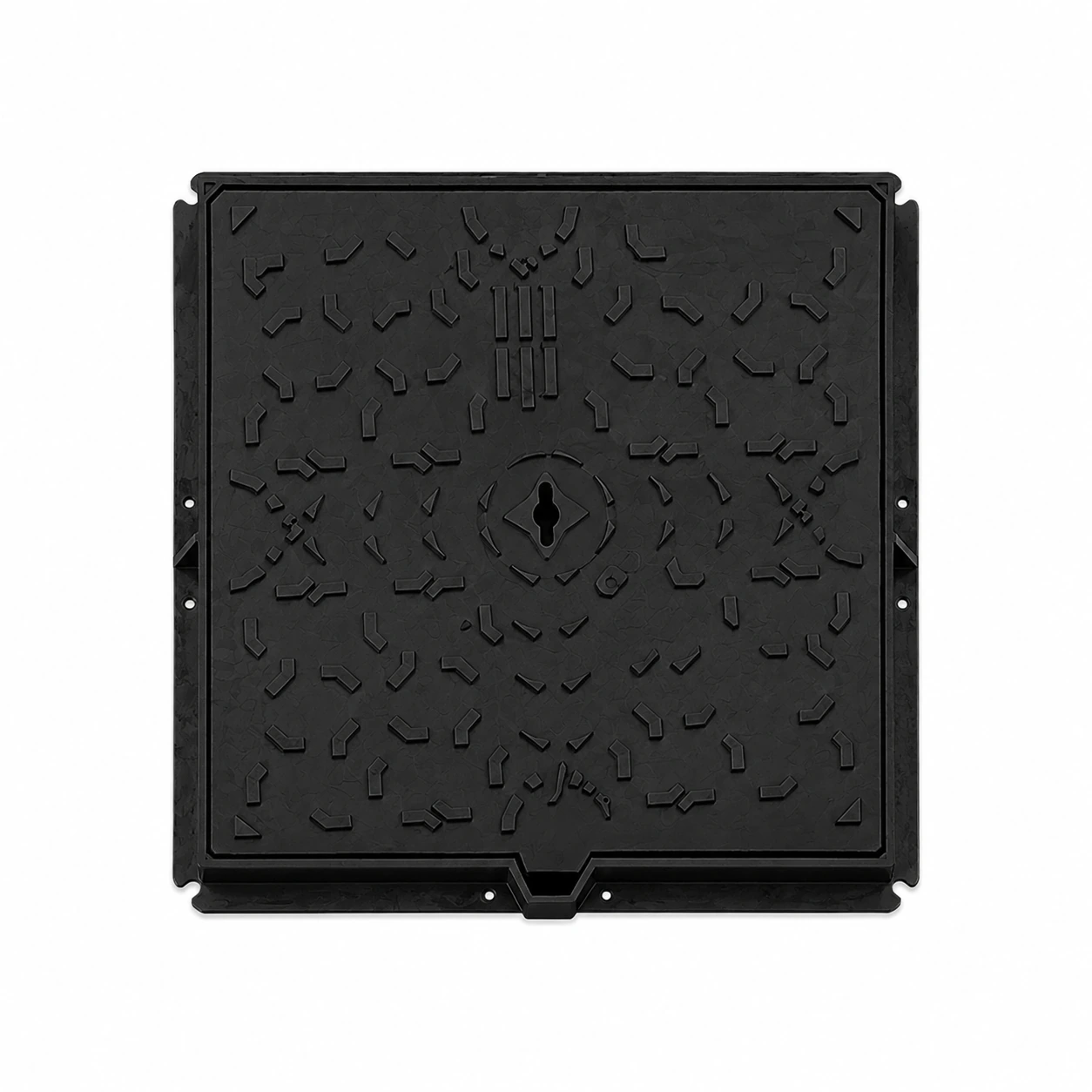

60×60 cm Square Cast Iron Manhole Cover (D400)
AD-KRK-04
A ductile cast iron product from the Square & Rectangular Manhole Covers range. Dimensions 600×600 mm, H45; EN 124 load class D400; weight 40 kg.
Technical Specifications
| Product Code | AD-KRK-04 |
| Dimensions | 600×600 mm, H45 |
| Load Class (EN 124) | D400 |
| Material | Cast Iron |
| Weight | 40 kg |
| Standard | TS EN 124 |
Get a price quote for this product
Send us quantities and project details; our team will get back to you shortly.
You can call us directly for this product without filling a form.

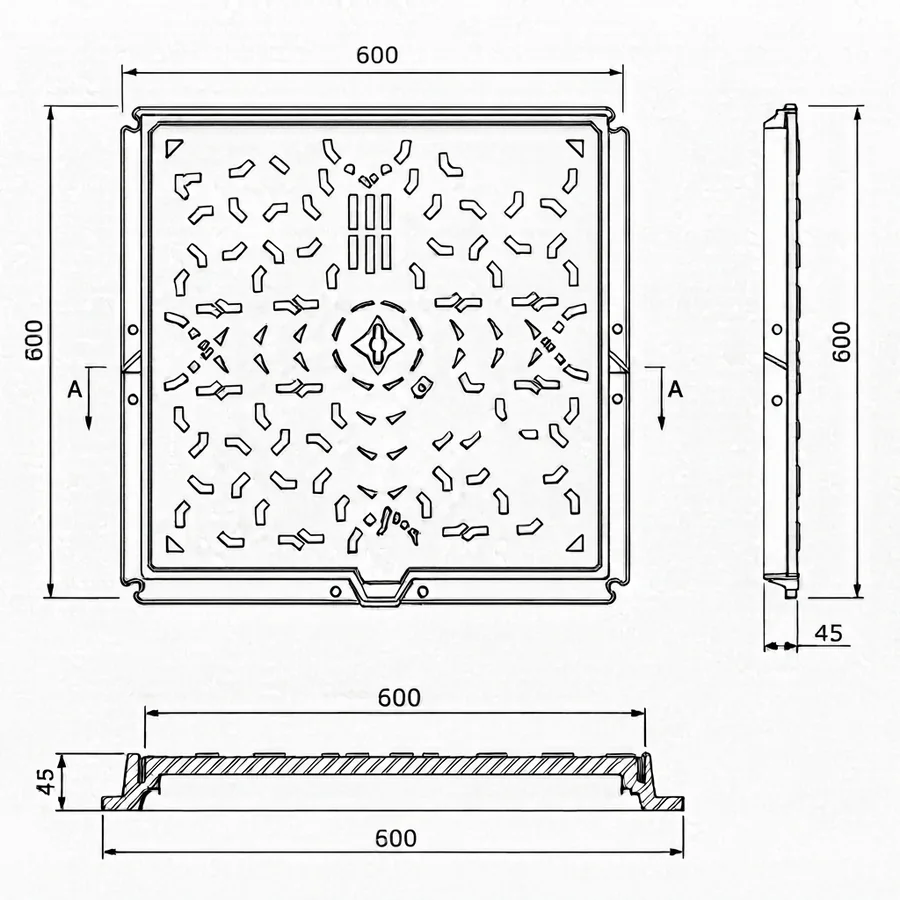

Product Details & Size Table
Cast iron manhole cover to TS EN 124. Size 600×600 mm, load class D400, approx. 40 kg.

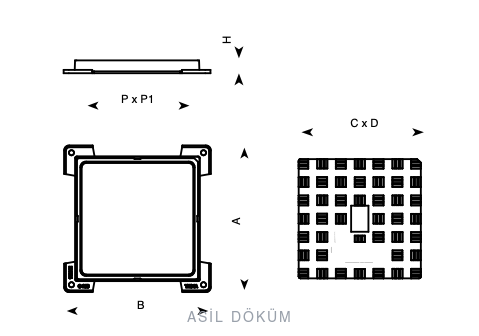

Dimension Table
| Dimension | Value |
|---|---|
| A | 600 mm |
| B | 600 mm |
| C | 525 mm |
| D | 525 mm |
| H | 50 mm |
