TS EN 124ISO 9001:2015CE
EN 124 · C250

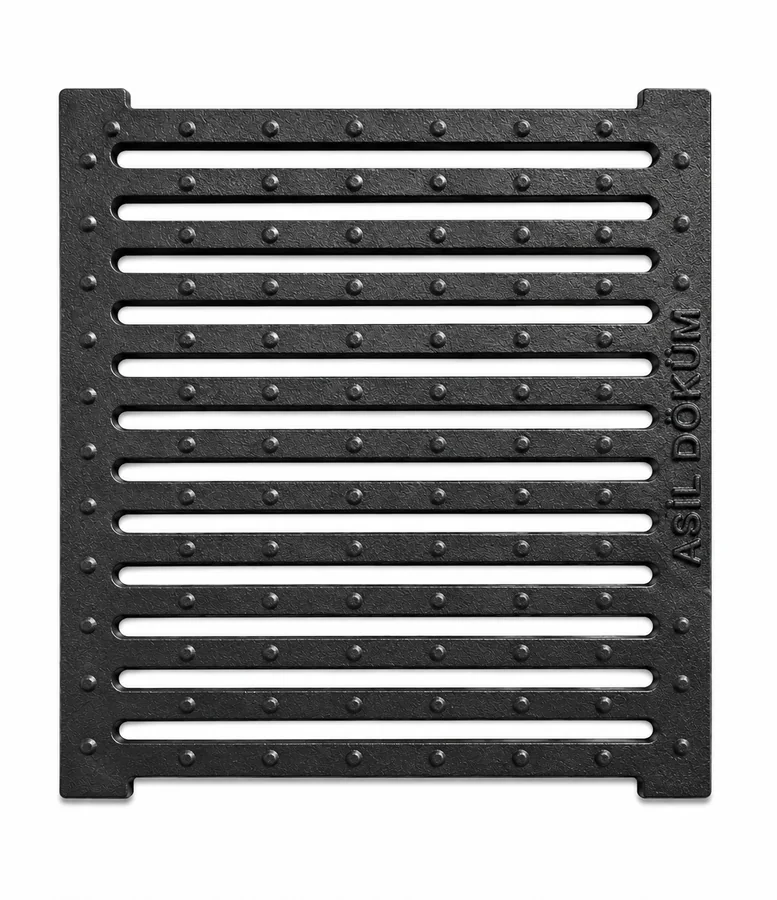

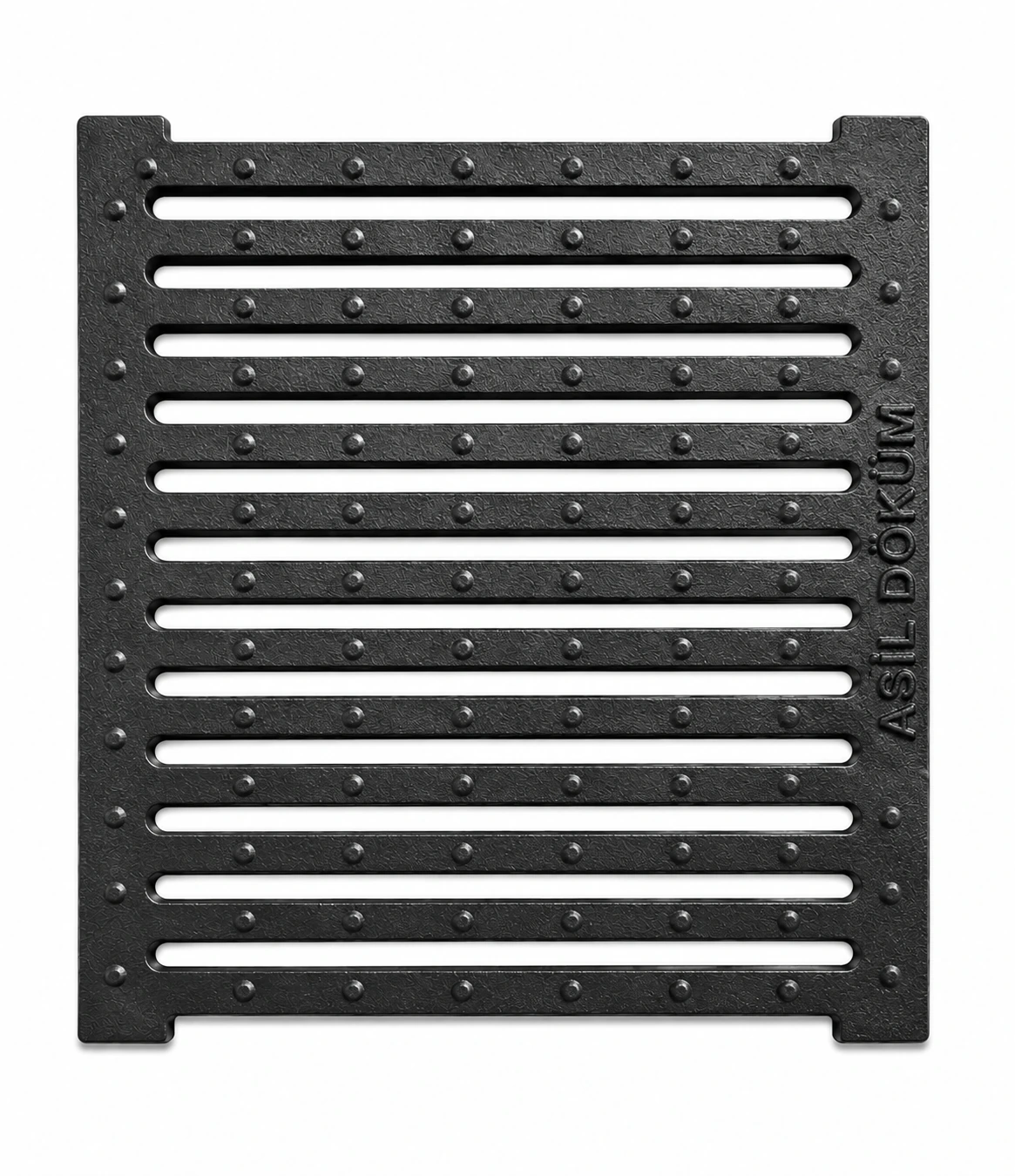

600×500×45 mm Cast Iron Channel Grating (C250)
AD-DKI-50
A ductile cast iron product from the Channel Gratings range. Dimensions 600×500×45 mm; EN 124 load class C250; weight 26 kg.
Technical Specifications
| Product Code | AD-DKI-50 |
| Dimensions | 600×500×45 mm |
| Load Class (EN 124) | C250 |
| Material | Cast Iron |
| Weight | 26 kg |
| Standard | TS EN 124 |
Get a price quote for this product
Send us quantities and project details; our team will get back to you shortly.
You can call us directly for this product without filling a form.
Product Details & Size Table
Cast iron grating to TS EN 124. Size 600×500×45 mm, load class C250, approx. 26 kg.

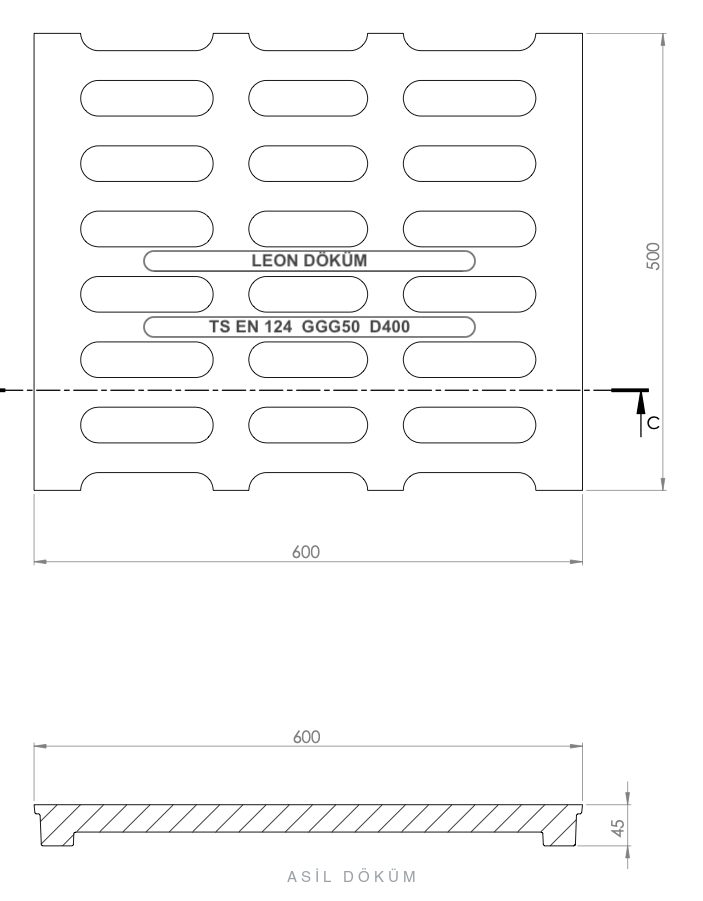

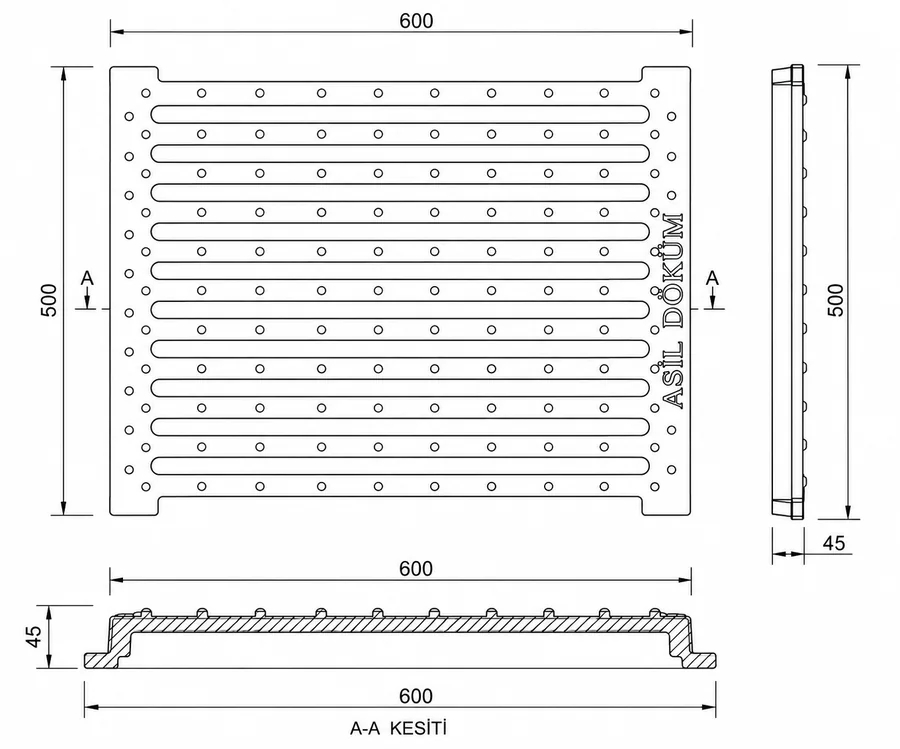

Dimension Table
| Dimension | Value |
|---|---|
| A | 600 mm |
| B | 500 mm |
| H | 45 mm |
