TS EN 124ISO 9001:2015CE
EN 124 · E600

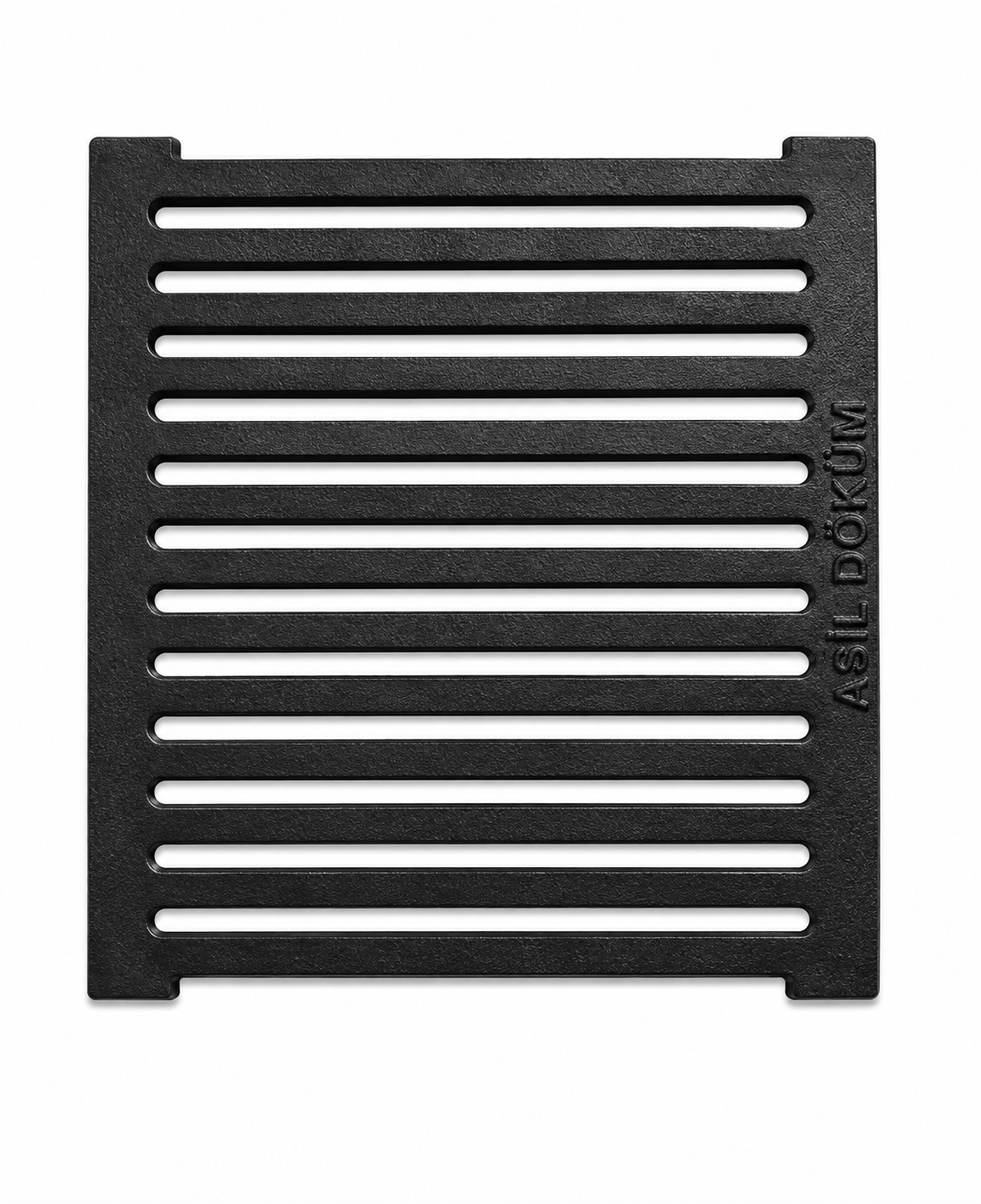

580×500×45 mm Cast Iron Channel Grating (E600)
AD-DKI-49
A ductile cast iron product from the Channel Gratings range. Dimensions 580×500×45 mm; EN 124 load class E600; weight 42 kg.
Technical Specifications
| Product Code | AD-DKI-49 |
| Dimensions | 580×500×45 mm |
| Load Class (EN 124) | E600 |
| Material | Cast Iron |
| Weight | 42 kg |
| Standard | TS EN 124 |
Get a price quote for this product
Send us quantities and project details; our team will get back to you shortly.
You can call us directly for this product without filling a form.
Product Details & Size Table
Cast iron grating to TS EN 124. Size 580×500×45 mm, load class E600, approx. 42 kg.

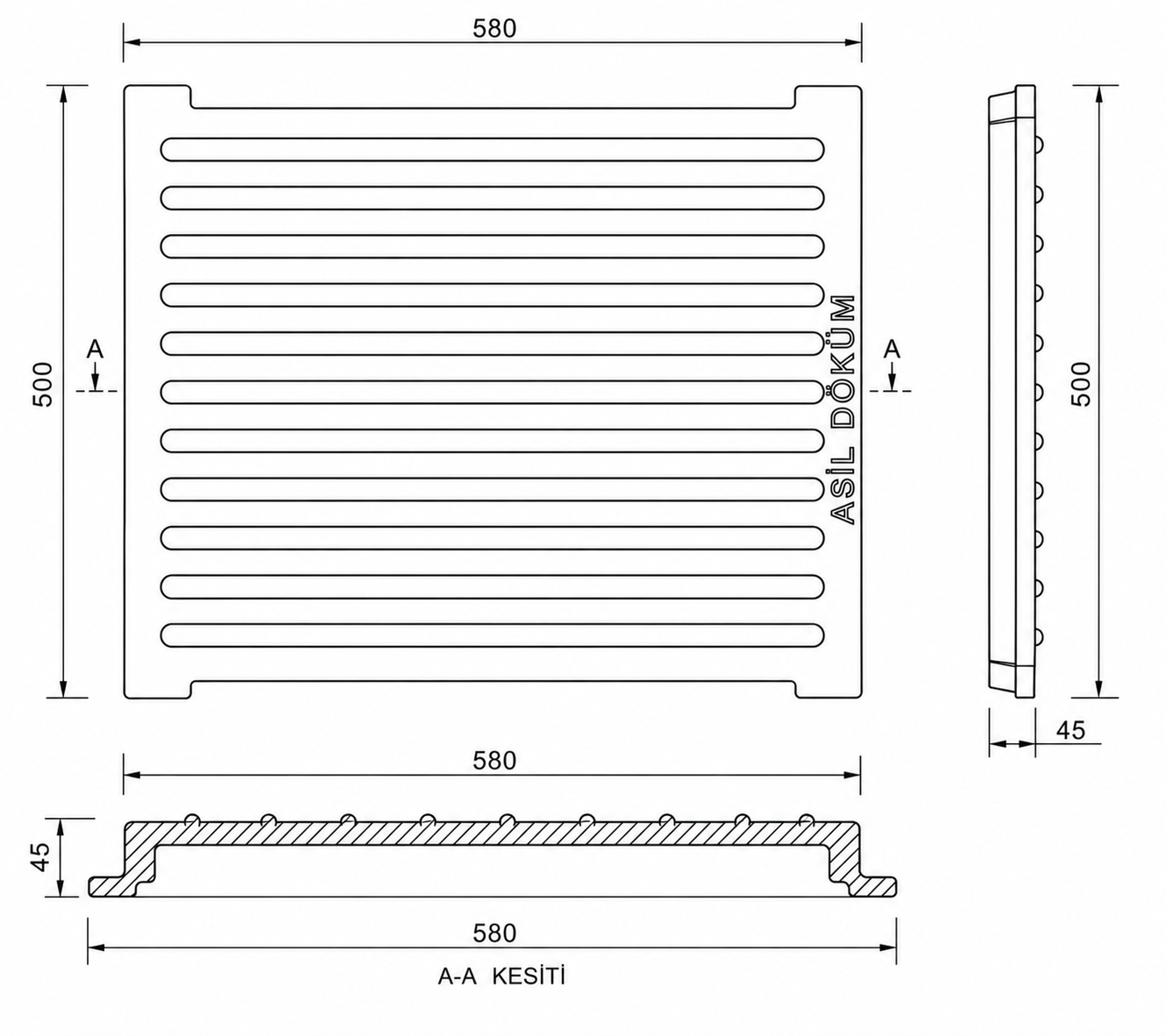

Dimension Table
| Dimension | Value |
|---|---|
| A | 580 mm |
| B | 500 mm |
| H | 45 mm |
