TS EN 124ISO 9001:2015CE
EN 124 · D400

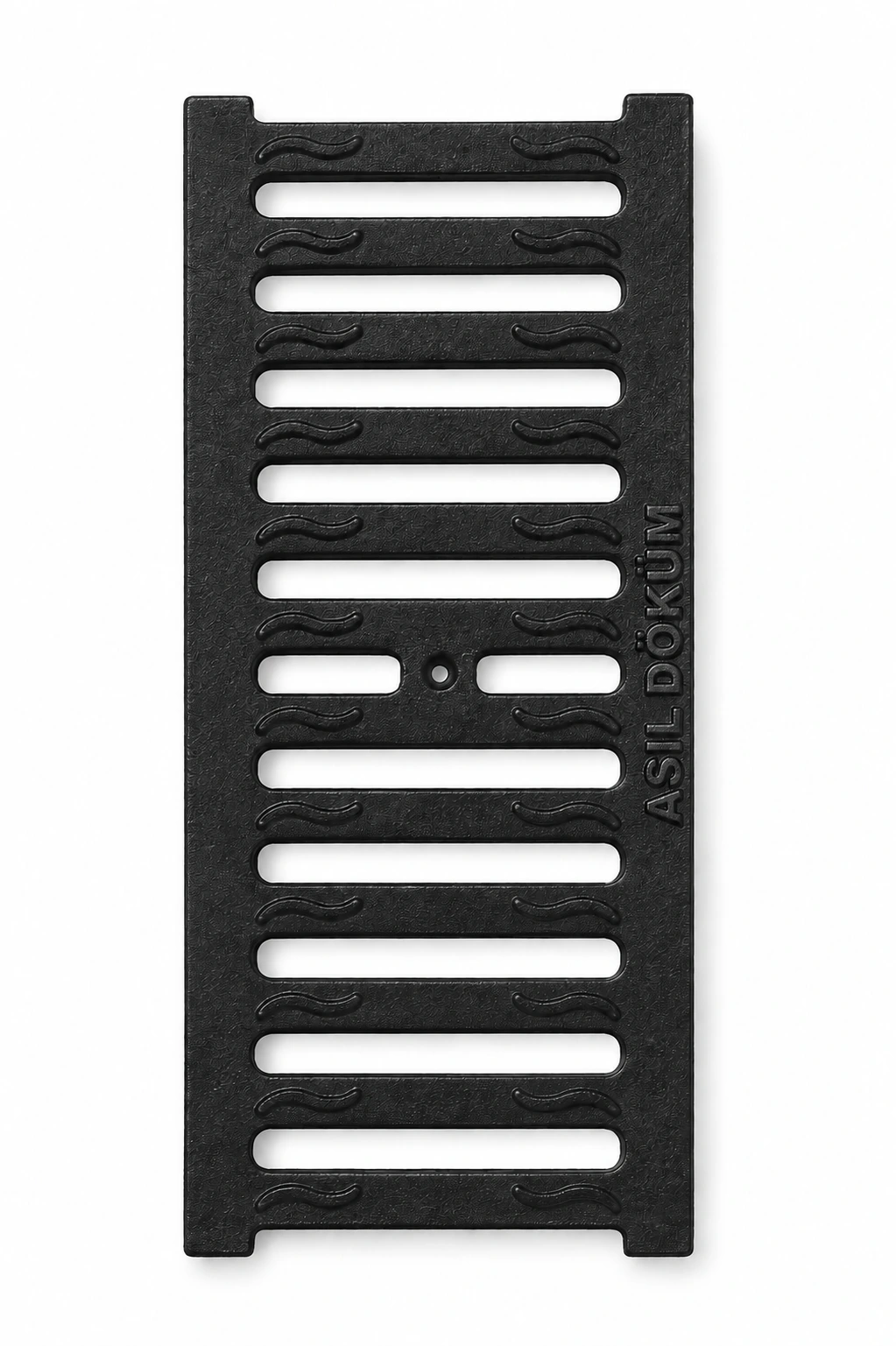

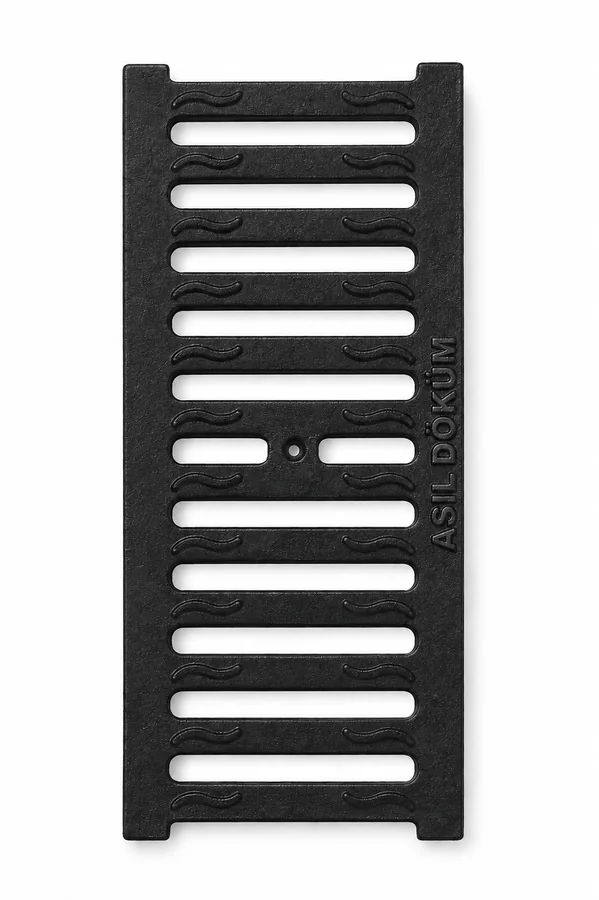

200×500×27 mm Cast Iron Channel Grating (D400)
AD-DKI-12
A ductile cast iron product from the Channel Gratings range. Dimensions 200×500×27 mm; EN 124 load class D400; weight 6 kg.
Technical Specifications
| Product Code | AD-DKI-12 |
| Dimensions | 200×500×27 mm |
| Load Class (EN 124) | D400 |
| Material | Cast Iron |
| Weight | 6 kg |
| Standard | TS EN 124 |
Get a price quote for this product
Send us quantities and project details; our team will get back to you shortly.
You can call us directly for this product without filling a form.
Product Details & Size Table
Cast iron grating to TS EN 124. Size 200×500×27 mm, load class D400, approx. 6 kg.

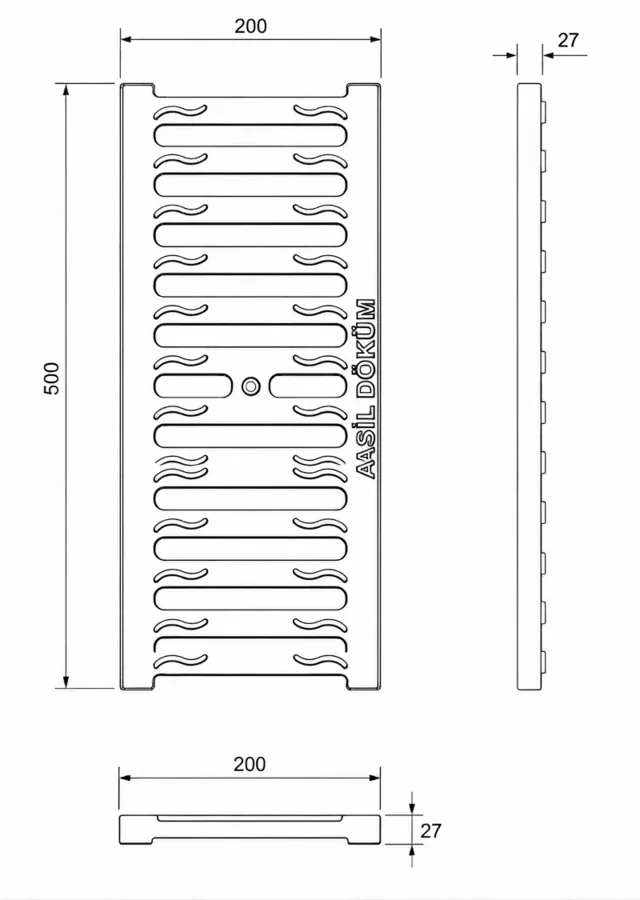

Dimension Table
| Dimension | Value |
|---|---|
| A | 200 mm |
| B | 500 mm |
| H | 27 mm |
